Product Details
＋

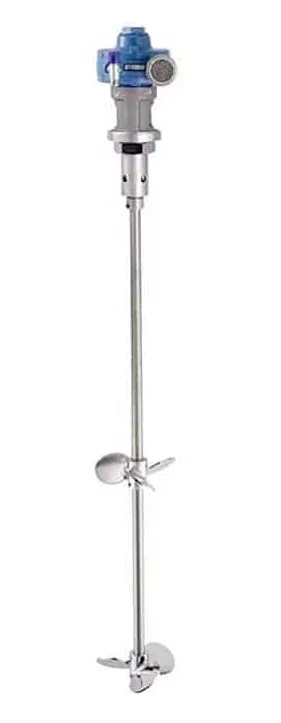

55 Gallon Direct Drive Agitator Assy. w/ cover
Binks has developed a complete upgrade to the agitators used in conjunction with existing pressure tanks (both light and heavy-duty applications).
The new worm gear agitator drive units offer:
- Superior oil drainage
- No need for safety guards (no exposed drive parts)
- 20:1 reduction (versus 15:1) that requires less air consumption for the same output shaft speed
- 20:1 reduction box (new style)
- Backward compatibility for easy upgrades on current and past pressure tanks.
| PART NUMBER | |

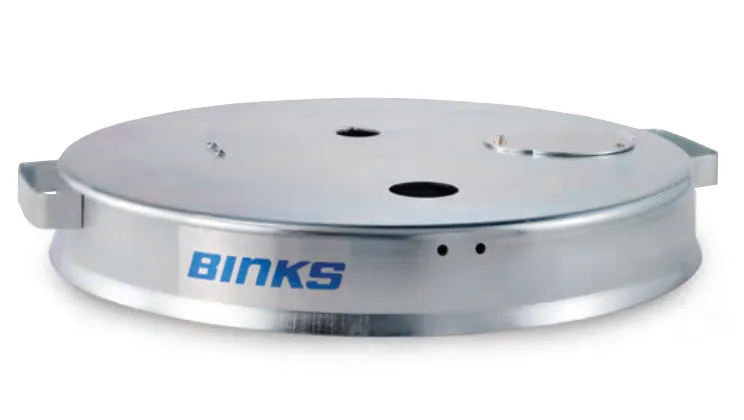

| COVER | 31-124 |
| CONTAINER SIZE | 55 Gallon |
| AIR MOTOR OR AIR MOTOR AND GEARBOX | 83-1922 A/M |
| AIR MOTOR HP | 1 HP |
| NUMBER OF PROPELLERS | 2 |
| PROPELLER AND SHAFT MATERIAL | Stainless Steel |
| GEARBOX ASSEMBLY | N/A |
| GEARBOX RATIO | N/A |
| AIR MOTOR OR GEARBOX REPAIR KIT | 6-183 |
| SERVICE MANUAL | 77-1390 |
MISC.NOTES
32” long shaft. Includes a 73-159 air adj. valve and an 83-1527 muffler
Old part# 31-128
