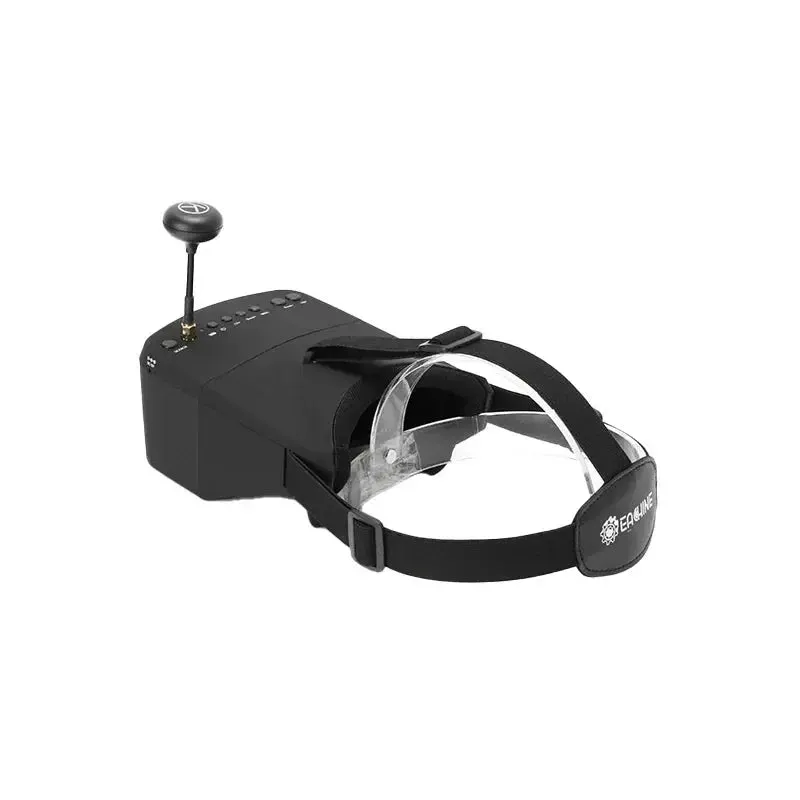

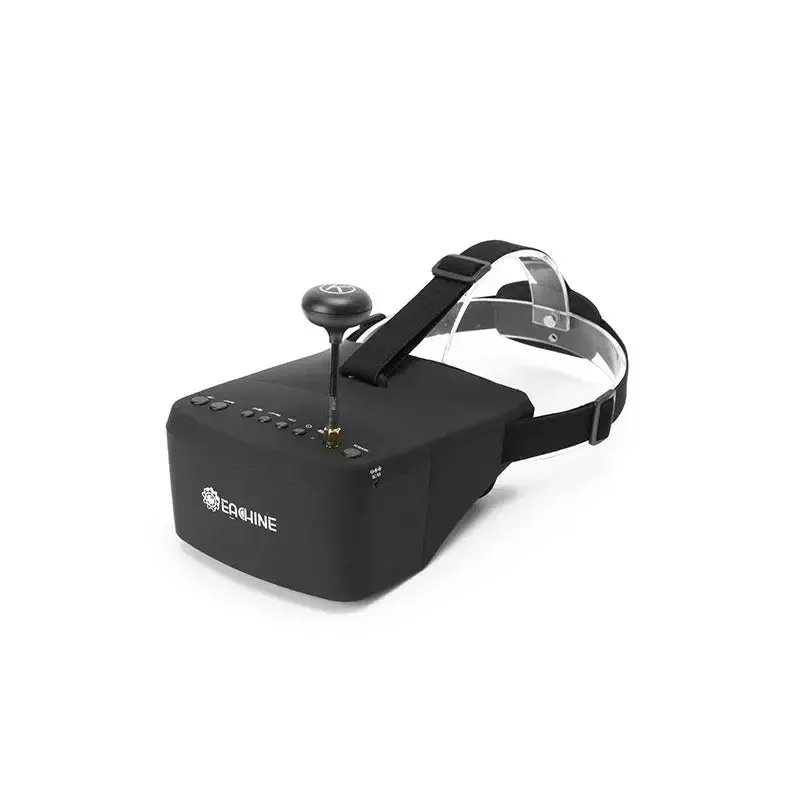

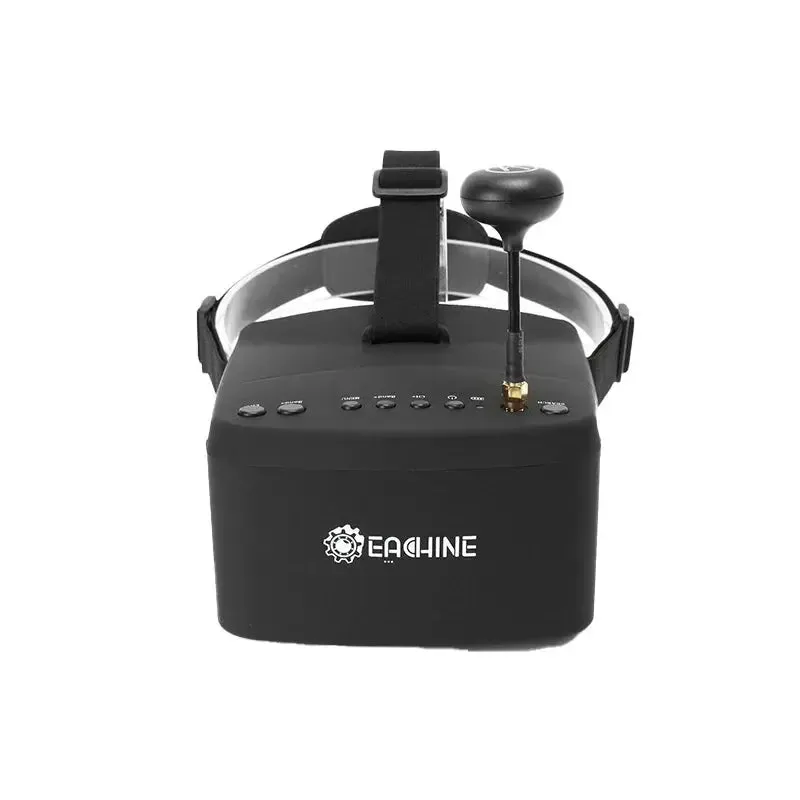

The Eachine EV800 FPV Goggles offer an exceptional viewing experience for drone racing and FPV enthusiasts. Featuring a vibrant 5-inch LCD screen with a resolution of 800×480, these Eachine EV800 FPV goggles deliver clear and immersive visuals, even in outdoor conditions thanks to their 600 cd/m² brightness. The ergonomic design, paired with a comfortable face sponge and adjustable three-way belt, ensures a snug fit for extended use.
Equipped with a built-in 5.8GHz 40-channel Raceband receiver, the Eachine EV800 FPV goggles include an advanced auto-searching function that quickly locates available frequencies, displaying them directly on the screen. The lenses provide a 92% transparency rate, ensuring minimal distortion and blur, while the 3x magnification enhances the immersive experience.
Please note: It is not compatible with Fatshark OLED receiver
Features:
- 5-Inch Display: High-resolution 800×480 screen for clear visuals.
- High Brightness: 600 cd/m² for optimal outdoor viewing.
- Wide Viewing Angle: 140° horizontal and 120° vertical for immersive experiences.
- Advanced Receiver: Built-in 5.8GHz 40CH Raceband receiver with auto-searching function.
- High Transparency Lenses: 92% transparency with minimal distortion.

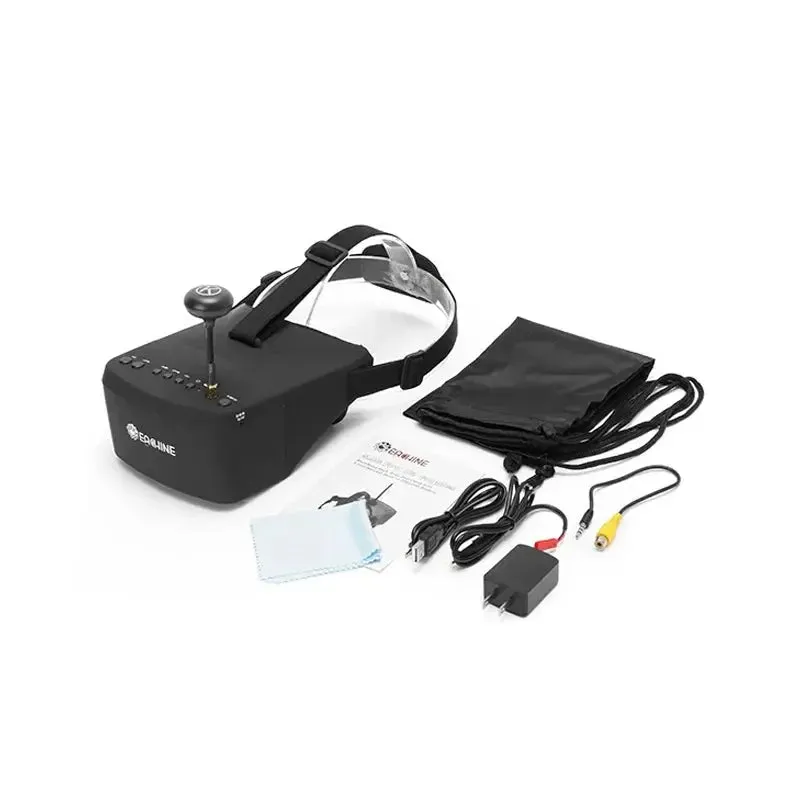

Package Includes:
1× EV800 FPV VR Goggles (Built-in 3.7V/2000mAh battery)
1× Antenna
1× USB charger cable
1× Battery charger cable
1× AV IN cable
Specification:-
| Receiver Type |
Built-in 5.8GHz 40CH Raceband receiver |
|---|---|
| Display Resolution |
800 x 480px |
| Field of view (FOV) |
140° horizontal / 120° vertical |
| Aspect Ratio |
16:9, 4:3 |
| IPD Visual Range |
56mm-72mm |
| Frequency |
5.8GHz (5333MHz – 5945MHz) |
| Sensitivity (dB) |
<=-93dB |
| Antenna Impedance |
50Ω |
| Antenna Gain (peak) (dBi) |
3dBi |
| Antenna Connector |
RP-SMA |
| Video Format Supported |
NTSC/PAL |
| Power Input |
7.4V |
| Low Voltage Warning |
6.8V |
| Battery |
2S (7.4V)/3S (11.1V), 3.7V, 2000mAh |
| Charging |
USB Cable(not included) |
| Operating Temperature (˚C): |
-10℃ to 40℃ |
| Focal length (EFL) |
-800D myopia and 300D hyperopia |
| Magnification |
3x boost for immersive viewing |
| Shipping Weight | 0.81 kg |
| Shipping Dimensions | 25 × 15 × 11 cm |
