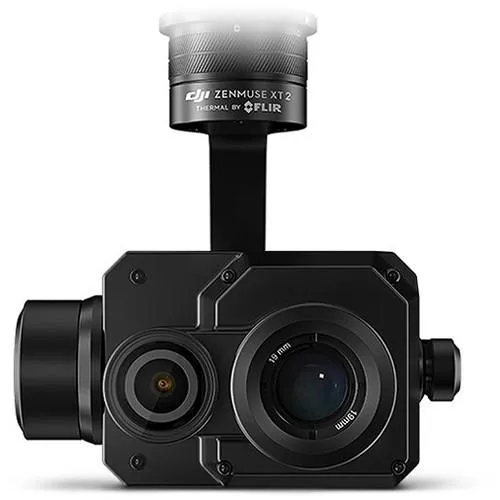

FLIR Systems Zenmuse XT2
FLIR CAMERAS ARE MADE TO ORDER AND CANNOT BE CANCELLED ONCE PROCESSED, UNLESS DAMAGED OR DEFECTIVE ON ARRIVAL. FOR INQUIRIES EMAIL [email protected].
The Zenmuse XT2 integrates a high-resolution FLIR thermal sensor and a 4K visual camera with DJI’s leading stabilization and machine intelligence technology to quickly transform aerial data into powerful insights. The advanced thermal sensor provides high sensitivity imaging for infrastructure monitoring, energy inspections, firefighting, search and rescue missions, and more. With a fully-integrated dual payload, professionals can capture thermal and color visible data in a single flight, saving time, money, and lives.
The three-axis gimbalised camera has a 20x thermal zoom to provide acute deep analysis of a particular spot if needed and grasp clear data through the two 640 × 512 non-radiometric Boson cameras and record clear imagery with a full-featured VGA thermal camera module.
Main Features
HIGH-RESOLUTION THERMAL IMAGING
The FLIR radiometric thermal sensor and 4K visual camera integrate seamlessly with DJI’s powerful enterprise drone platforms to increase efficiency.
IP44 RATED RUGGED DESIGN
IP44 rated, combining the XT2’s weather-resistant dual sensor with the M200 allows pilots to fly in rain, snow, smoke, and fog.
FLIR MSX® MULTI-SPECTRAL DYNAMIC IMAGING
MSX intelligent image processing embosses visible image edge details onto thermal images for enhanced perspective and safety.MISSION READY ALWAYS!
Easy to inspect, search, or explore from the air, Zenmuse XT2 is ideal for firefighting, SAR, infrastructure thermal imaging and more.
-
- 1 x FLIR Systems Zenmuse XT2
-
-
-
Exportable Frame Rates
<9 HzPixel Pitch
17 micrometerScene Range (high gain)
336x256: -25o to 100oCScene Range (low gain)
-40o to 550oCSpectral Band
7.5 - 13.5 micrometerThermal Imager
Uncooled VOx MicrobolometerSupported File System
FAT 32 (is less than or equal to 32GB), exFAT (is more than or equal to 32GB)ELECTRICAL and MECHANICAL
File Storage
microSD card, The SD card, which is located near the lens, is used to store TIFF Sequence and SEQ infrared RAW video only. The other format footage will be stored in the other SD card.ENVIRONMENTAL
Storage
microSD card. Max capacity: 128 GB. UHS-3 required. Recommended model: Sandisk Extreme 16/32 GB UHS-3 microSDHC Sandisk Extreme 64/128 GB UHS-3 microSDXCIMAGING and OPTICAL
Angular Vibration Range
/- 0.01oCMOS
CMOS, 1/1.7", Resolution: 12 MColor and Monochrome Palettes (LUTs)
YesDigital Detail Enhancement
YesDigital Zoom
Thermal Camera: 336x256: 1x, 2x, 4x, Visual Camera: 1x, 2x, 4x, 8xFPA and Digital Video Display Formats
Depends on the variantFull Frame Rate
Depends on the variantImage Optimization
YesLens
Prime lens, Focus at 5 mm, FOV 90o x 65o Focus at 8 mm, FOV 57.12o x 42.44Mount
DetachablePolarity Control (black hot and white hot)
YesSensitivity (NEdT)
<50 mk at f/1.0Still Photography Modes
Single Shot Burst Shooting (3/5 frames) Interval (2/3/4/7/10/15/20/30 sec)Video Format
Thermal: 8 bit: MOV, MP4 14 bit: TIFF Sequence, SEQ Visible: MOV, MP4 It is recommended to use ImageJ to play the TIFF Sequence video and Flir Tools to play SEQ videoPhoto Format
Thermal Camera: JPEG, TIFF, R-JPEG Visible Camera: JPEGWorking Modes
Capture, Record, PlaybackVideo Subtitle
SupportPAN-TILT
Controllable Range
Tilt: 30o to -90o, Pan: /-320oMechanical Range
Tilt: 45o to -130o, Pan: /-330o, Roll: -90o to 60oPERFORMANCE
Max controllable speed
Tilt: 90o/s,Pan: 90o/sVIDEO and RECORDING
Video Resolution
4K Ultra HD: 3840x2160 29.97p FHD: 1920x1080 29.97pItem Dimension (L inchxW inchxH inch)
10 x 8 x 7
Weight
5.00 lb
Warranty Information
1 Year
-
-
